When selecting the working area of a laser marking machine, blindly opting for “the larger, the better” can lead to equipment underutilization and cost waste, while an insufficient working area may limit production flexibility. By 2025, the standard marking area of mainstream models will primarily range from 100×100mm to 300×300mm. Enterprises need to establish a three-dimensional decision-making model integrating “working area × efficiency × cost,” taking into account workpiece dimensions, processing precision, and production workflows. The following practical cases and calculation formulas will help you accurately match your requirements.
I. Key Marking Area Specifications & Applications
The marking area is determined by the galvanometer’s scanning range. Here are common specifications and their typical uses:
| Marking Area | Max Workpiece Size | Typical Applications | Machine Type |
|---|---|---|---|
| 100×100mm | ≤80×80mm | Electronic components (chips, connectors) | UV laser markers (precision) |
| 150×150mm | ≤120×120mm | Phone casings, small metal parts | Fiber laser markers (standard) |
| 200×200mm | ≤180×180mm | Appliance panels, auto parts | CO₂ laser markers (non-metal) |
| 300×300mm | ≤280×280mm | Large molds, medical device housings | Fiber laser markers (wide-format) |
| Custom | Irregular/large workpieces | Aerospace components, ship parts | Dynamic focusing systems |
Critical Insight: A 50mm increase in marking area raises costs by 15-20% (e.g., 200×200mm costs ~¥3,000 more than 150×150mm) and reduces precision by 5-10% at the edges. For instance, a 200×200mm machine may achieve 0.01mm precision at the center but only 0.03mm at the edges.

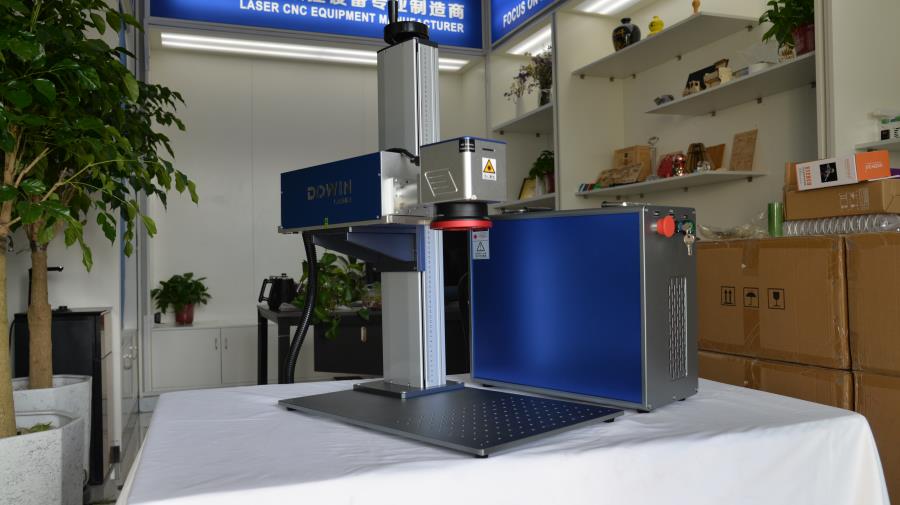

II. Marking Area Calculator: 3-Step Formula
Formula: Minimum Required Area = (Max Workpiece Dimension × 1.2) + Safety Margin (10-20mm)
（×1.2 accounts for clamping errors; safety margin allows for alignment and edge processing）
Example 1: Phone frame marking (150×70mm workpiece)
Minimum Area = 150mm×1.2 + 20mm = 200mm → Choose 200×200mm
Example 2: Car steering wheel logo (350mm diameter circular workpiece)
Minimum Area = 350mm×1.2 + 0mm (no margin needed for circles) = 420mm → Custom 400×400mm or add a rotary axis
Note: For cylindrical or multi-sided workpieces, pair standard areas with rotary axes (40% cheaper than custom areas). A 150×150mm machine with a 100mm rotary chuck can handle cylindrical workpieces up to 300mm long.
III. Balancing Area, Speed, and Precision
- Small Workpieces on Large Areas: Hidden Costs
A company processing 20×20mm electronic buttons on a 300×300mm machine experienced:- 60% longer idle time (due to larger galvanometer movement)
- 5% higher scrap rates (edge distortion)
Solution: 100×100mm machine with high-speed galvanometers (e.g., ScanLab HurrySCAN 10) for 3x faster processing
- Large Workpieces: Tiling with Worktables
For 500×500mm mold marking:- Option 1: Standard 200×200mm machine + XY worktable (~¥33,000 total)
- Option 2: Custom 500×500mm machine (~¥80,000)
Option 1 saves 59% cost with only 15% slower speed
- Dynamic Focus Systems: Ultimate Flexibility
For 3D curved surfaces (e.g., aircraft turbine blades), dynamic focus systems offer 100-500mm adjustable areas but require:- 80-120% higher budget vs. standard machines
- Accepting ≤0.05mm precision (due to lens distortion)
IV. Common Pitfalls to Avoid
- Oversizing for “Future-Proofing”: A furniture factory bought a 300×300mm machine for 50×50mm wooden signs, wasting ¥1,200/year on electricity and losing fine detail (0.1mm lines blurred).
Fix: Size to 80% of your largest current workpiece, with 20% buffer for growth. - Mismatched Galvo-Lens Pairing: Using a short-focal-length lens (small spot) on a large-area machine causes edge distortion; a long-focal-length lens (large spot) on a small-area machine reduces energy density.
Fix: Use factory-matched lenses or recalibrate parameters when upgrading. - Ignoring Production Line Constraints: An auto parts plant purchased a 300×300mm machine only to find its 250mm-wide conveyor couldn’t fit, requiring ¥12,000 in line modifications.
Fix: Measure line space first; prioritize modular designs (e.g., split optical systems).
Conclusion: Maximize Value per Square Millimeter
The optimal marking area balances workpiece size, precision, and cost. For most SMEs, 150-200mm standard areas with rotary/worktable add-ons strike the best balance, covering 80% of applications while keeping budgets under ¥100,000. For variable workpiece sizes, consider a dual-machine strategy: small-area (high-precision) and medium-area (high-efficiency) units.
Remember: The best marking area isn’t the largest—it’s the one that turns every square millimeter into profit.
